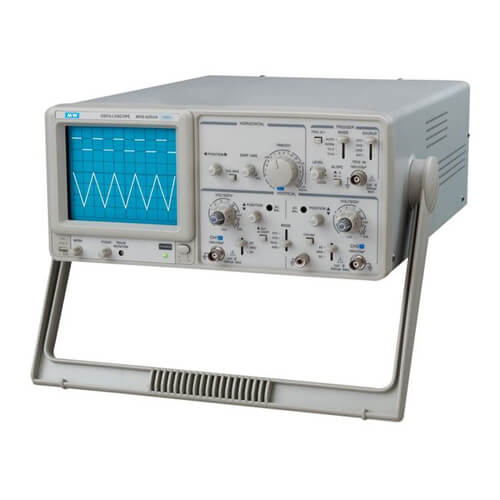

Analog Oscilloscope LODESATAR MOS-620CH 20MHz DUAL Channel
Original price was: 48,000.00৳ .44,000.00৳ Current price is: 44,000.00৳ .
Cell No: +88001611173666
Key Features
- Dual Channel Analog Oscilloscope
- 20MHz Bandwidth
- Built-in 6 Digit Frequency Counter
- 10× Sweep Magnification
- X-Y Display Mode
- TV Synchronization Function
- High Brightness CRT Display
- ALT Triggering for simultaneous signal observation
Technical Specifications
| Feature | Specification |
|---|---|
| Model | MOS-620CH |
| Brand | LODESTAR |
| Type | Analog Oscilloscope |
| Channels | Dual Channel |
| Bandwidth | 20MHz |
| Sensitivity | 5mV–5V/DIV |
| Sweep Time | 0.2µs–0.5s/DIV |
| Trigger Modes | AUTO / NORM / TV |
| Display | 6-inch CRT |
| Input Impedance | 1MΩ / 25pF |
| X-Y Mode | Available |
| Frequency Counter | Built-in 6 Digit |
Applications
- Electronics laboratory experiments
- PCB signal testing
- Audio signal analysis
- Power supply troubleshooting
- Communication circuit testing
- Educational and technical institutes
- Industrial maintenance work
Advantages
- Stable analog waveform display
- Easy real-time signal observation
- Reliable for educational and repair applications
- Suitable for low and medium frequency electronic circuits
A 20MHz oscilloscope is commonly considered suitable for audio circuits, microcontroller projects, serial communication analysis, and general electronics education/testing.
The MOS-620CH model includes features such as dual-channel input, X-Y mode, TV synchronization, and built-in frequency counter according to multiple supplier specifications
